🛠️ Product Features
Fully Automatic 3-in-1 Operation – Recovers, recycles, and recharges R-134a with a simple touch

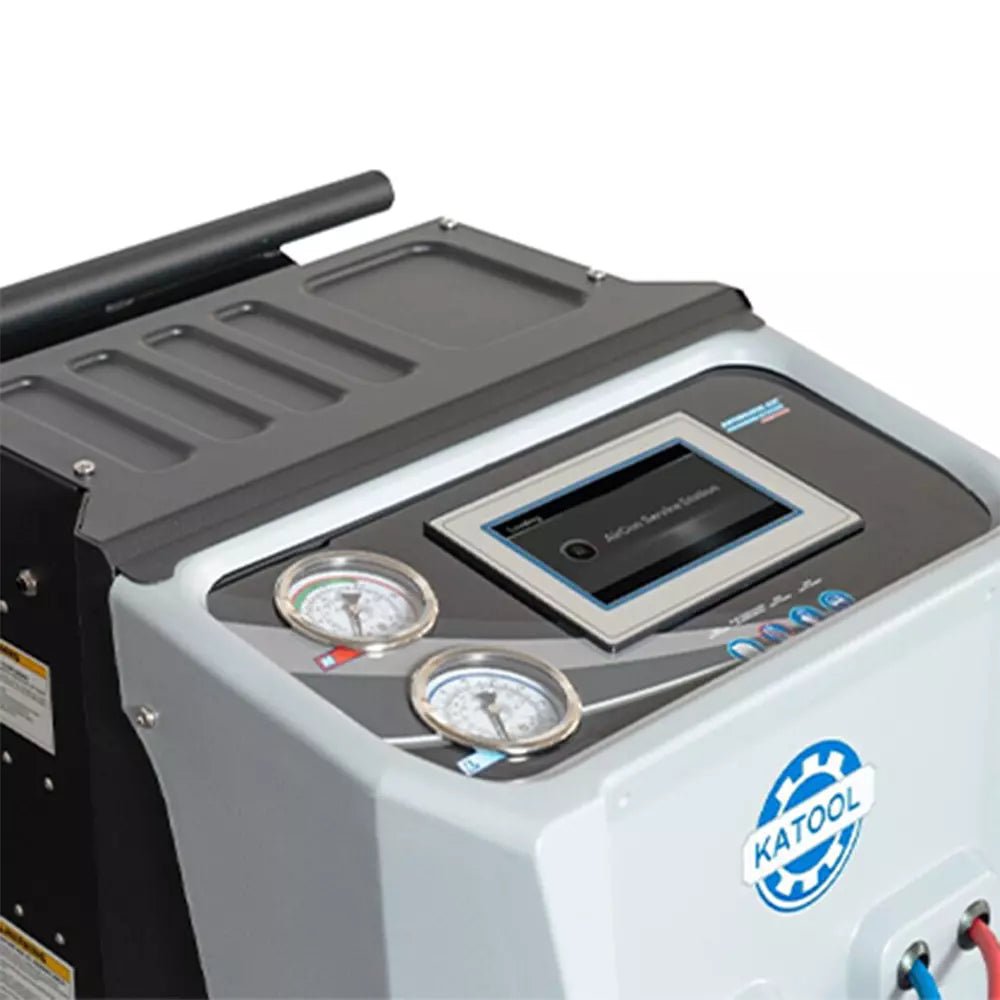

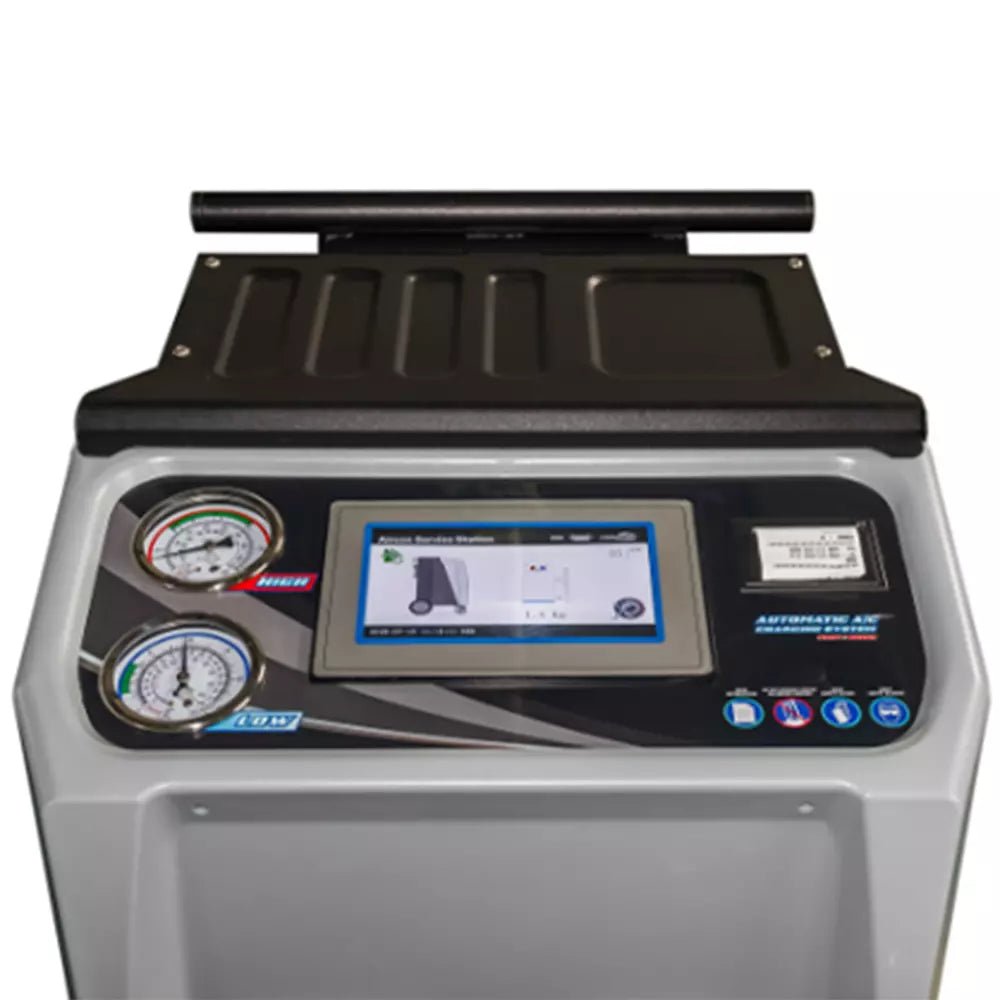

7” High-Quality Touchscreen Display – Intuitive interface with guided prompts for easy operation
High-Efficiency Performance – Recovers up to 95% refrigerant in under 30 minutes; charges within ±0.5 oz

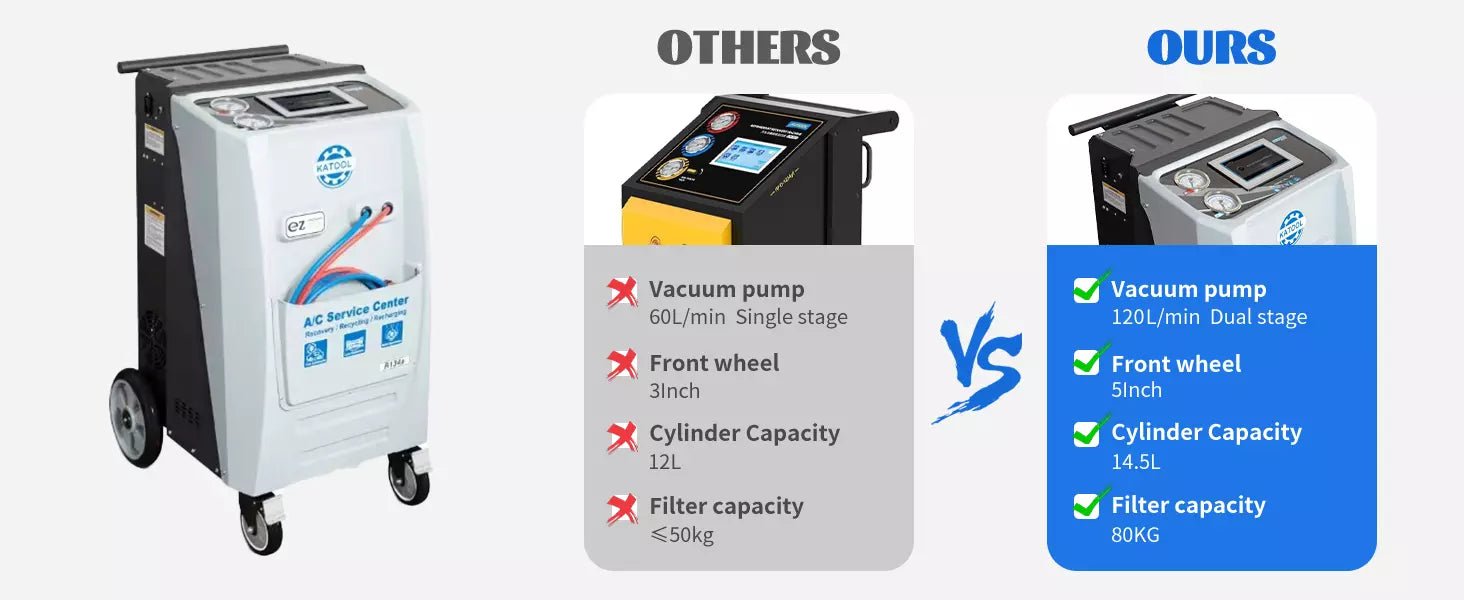

Dual-Stage Vacuum Pump – Powerful 3.6 CFM vacuum system for thorough evacuation
Accurate Loadcell Sensors – Precise measurement for both refrigerant and oil (1g accuracy)

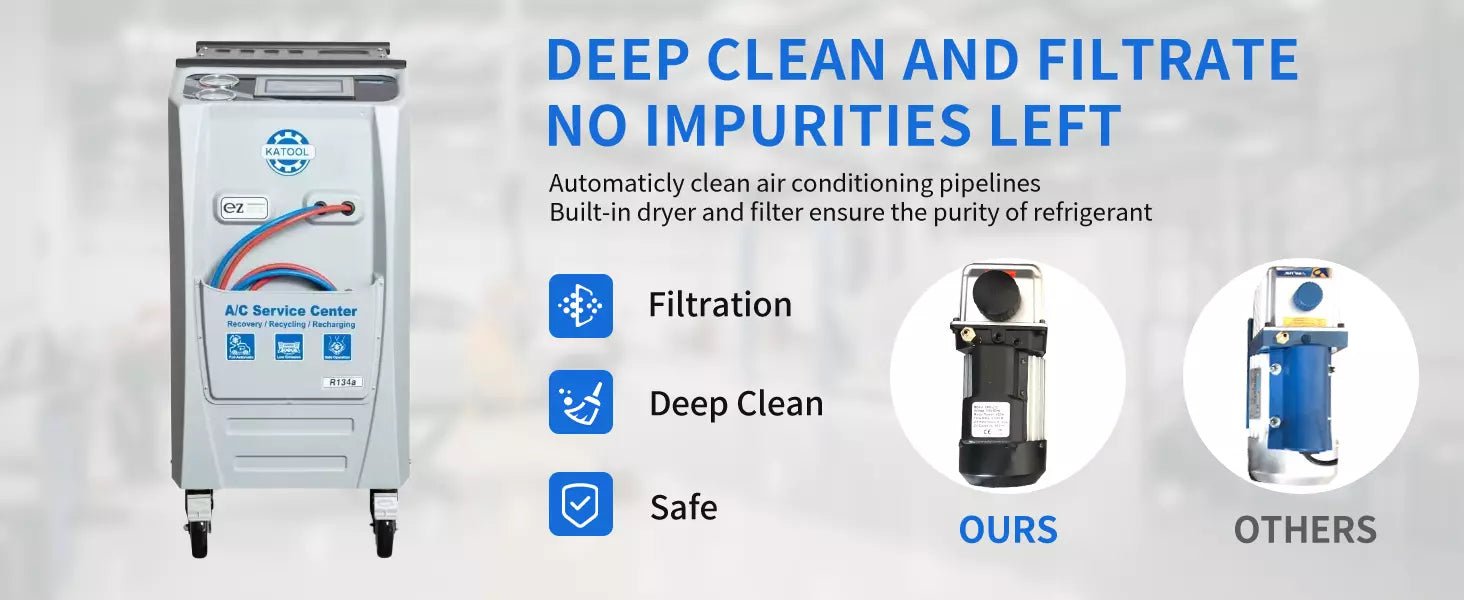

Spin-On Filter-Drier – 175 lb capacity with easy replacement for clean system operation
Heavy-Duty Compressor – 1/3 HP sealed and thermal-protected for durability and long-term reliability
Durable & Compact Design – Shop-friendly footprint built for mobile or fixed garage environments

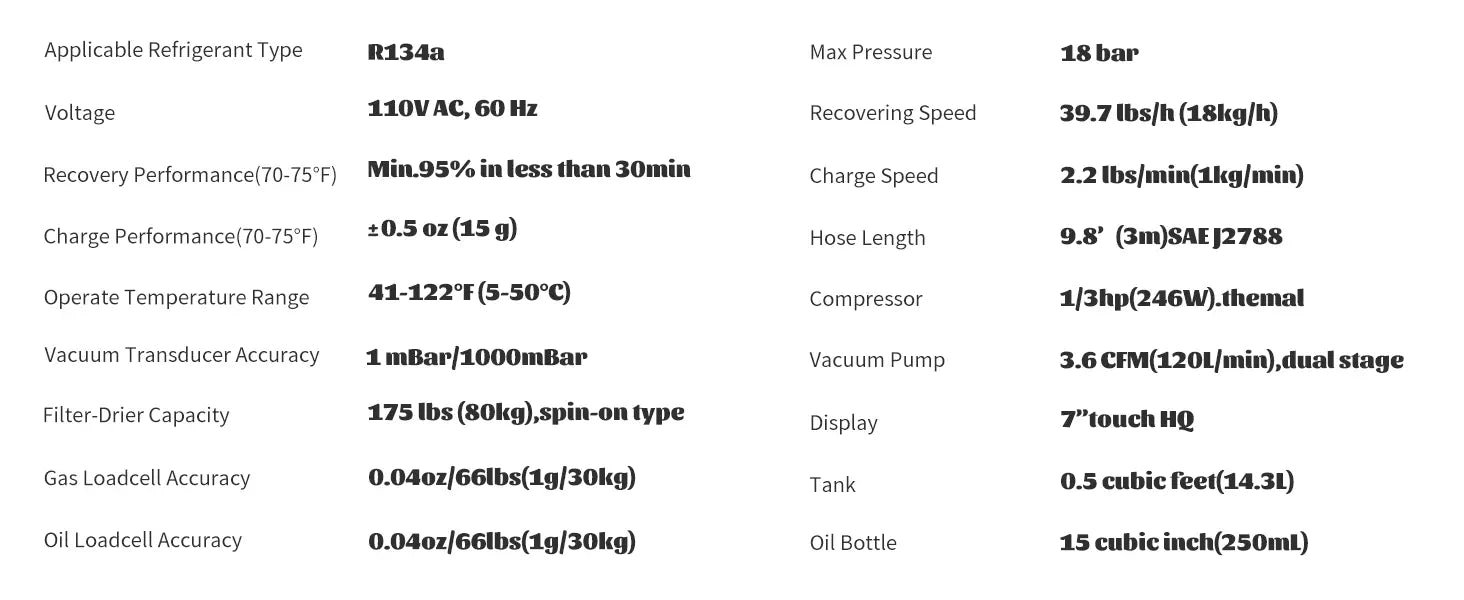

📊 Technical Specifications
| Specification | Value |
|---|---|
| Refrigerant Type | R-134a |
| Voltage | 110V AC, 60 Hz |
| Recovery Performance | ≥ 95% in < 30 minutes |
| Charge Accuracy | ± 0.5 oz (15 g) |
| Operating Temp Range | 41°F – 122°F (5°C – 50°C) |
| Max Pressure | 18 bar |
| Filter-Drier Capacity | 175 lbs (80 kg), spin-on type |
| Gas Loadcell Accuracy | 0.04 oz / 66 lbs (1g / 30kg) |
| Oil Loadcell Accuracy | 0.04 oz / 66 lbs (1g / 30kg) |
| Vacuum Transducer Accuracy | 1 mBar / 1000 mBar |
| Recovery Speed | 39.7 lbs/h (18 kg/h) |
| Charge Speed | 2.2 lbs/min (1 kg/min) |
| Hose Length | 9.8 ft (3m) SAE J2788 |
| Compressor | 1/3 HP, hermetically sealed |
| Vacuum Pump | 3.6 CFM (120 L/min), dual-stage |
| Display | 7″ Touch HQ |
| Tank Capacity | 0.5 cu. ft. (14.3 L) |
| Oil Bottle Capacity | 15 cu. in. (250 mL) |
| Packing Size | 22” x 28” x 41” (550 x 700 x 1050 mm) |
| Gross Weight | 240 lbs (110 kg) |

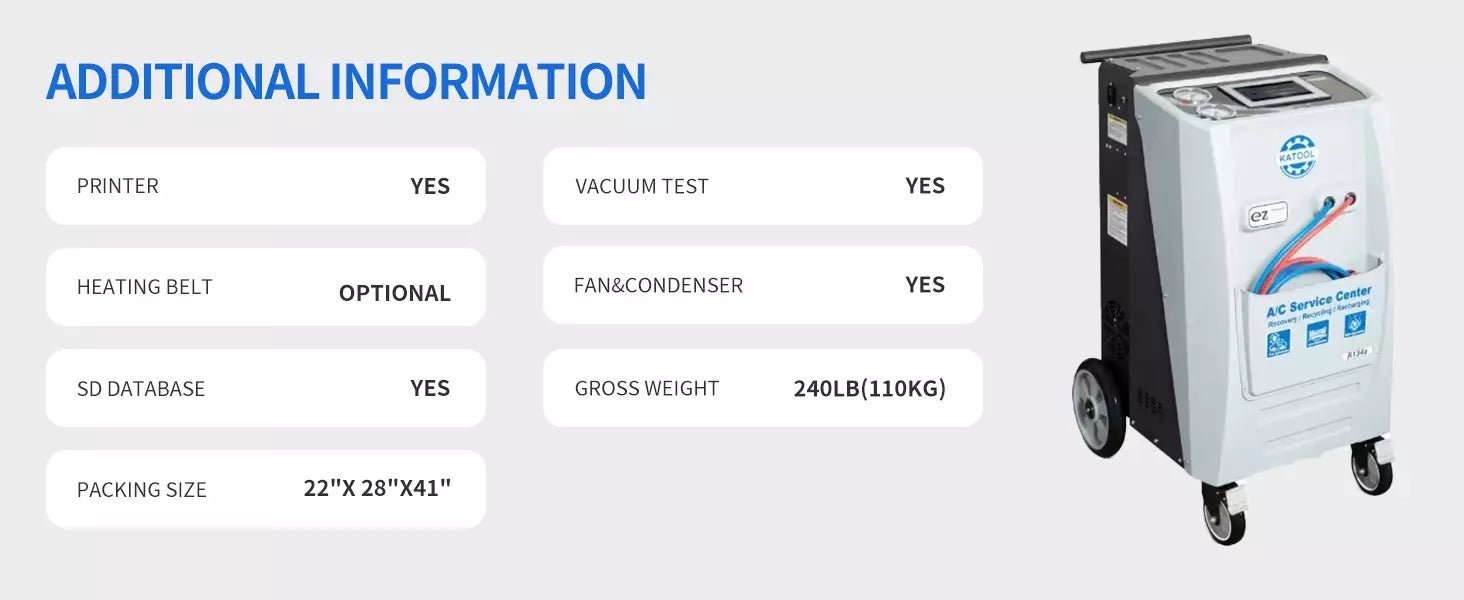

➕ Additional Features
✅ Built-in Printer for instant service reports
✅ Vacuum Leak Test function included
✅ Fan & Condenser for heat management during long operations
✅ SD Card Database for refrigerant and vehicle info
✅ Optional Heating Belt available for cold-climate performance
📦 Shipping Policy
Freight shipping only within the lower 48 U.S. states
Free shipping to commercial addresses
Additional charges may apply for residential delivery, limited access, or remote locations
Buyer is responsible for unloading the machine from the truck (forklift or dock required)
Re-delivery fees are the buyer’s responsibility if delivery is missed or refused
Please inspect the product carefully before signing the Bill of Lading or Delivery Receipt. Signing without notes implies product was received in good condition
