SHIPING POLICY:

• Freight shipping ONLY within the lower 48 states.

• Free shipping to commercial address.Shipping carrier could charge extra to residential Delivery or limited access.

• THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.

• Customer should consider Forklift and unloading dock service.

• The buyer should be also responsible for any re-delivery charges.

• Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

•  Technical Details

  Applicable Refrigerant Type	R1234YF
  Voltage	110V AC, 60 Hz
  Recovery Performance(70-75°F)	Min.95% in less than 30min
  Charge Performance(70-75°F)	±0.5 oz (15 g)
  Operate Temperature Range	41-122°F (5-50°C)
  Max Pressure	18 bar
  Filter-Drier Capacity	175 lbs (80kg),spin-on type
  Gas Loadcell Accuracy	0.04oz/66lbs(1g/30kg)
  Oil Loadcell Accuracy	0.04oz/66lbs(1g/30kg)
  Vacuum Transducer Accuracy	1 mBar/1000mBar
  Recovering Speed	39.7 lbs/h (18kg/h)
  Charge Speed	2.2 lbs/min(1kg/min)

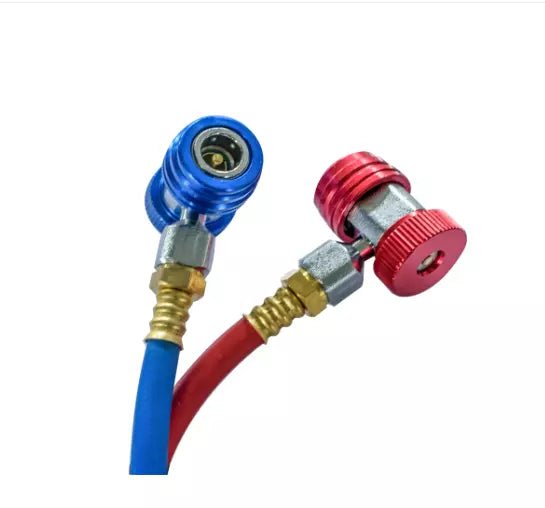

  Hose Length	9.8’(3m)SAE J2788
  Compressor	1/3hp(246W).themal protected,oiled,hermetically sealed
  Vacuum Pump	3.6 CFM(120L/min),dual stage

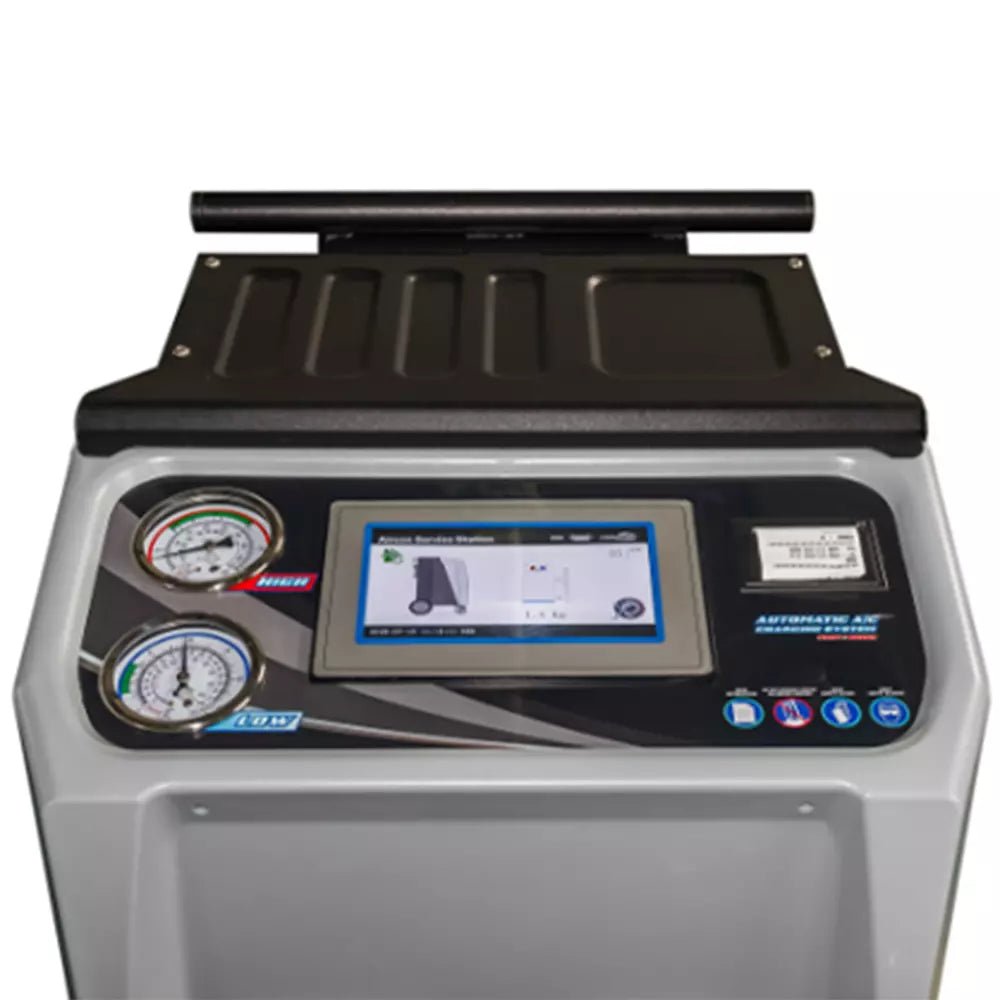

  Display	7”touch HQ
  Tank	0.5 cubic feet(14.3L)

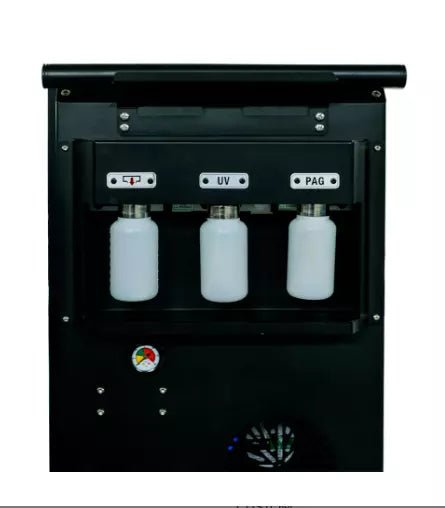

  Oil Bottle	15 cubic inch(250mL)

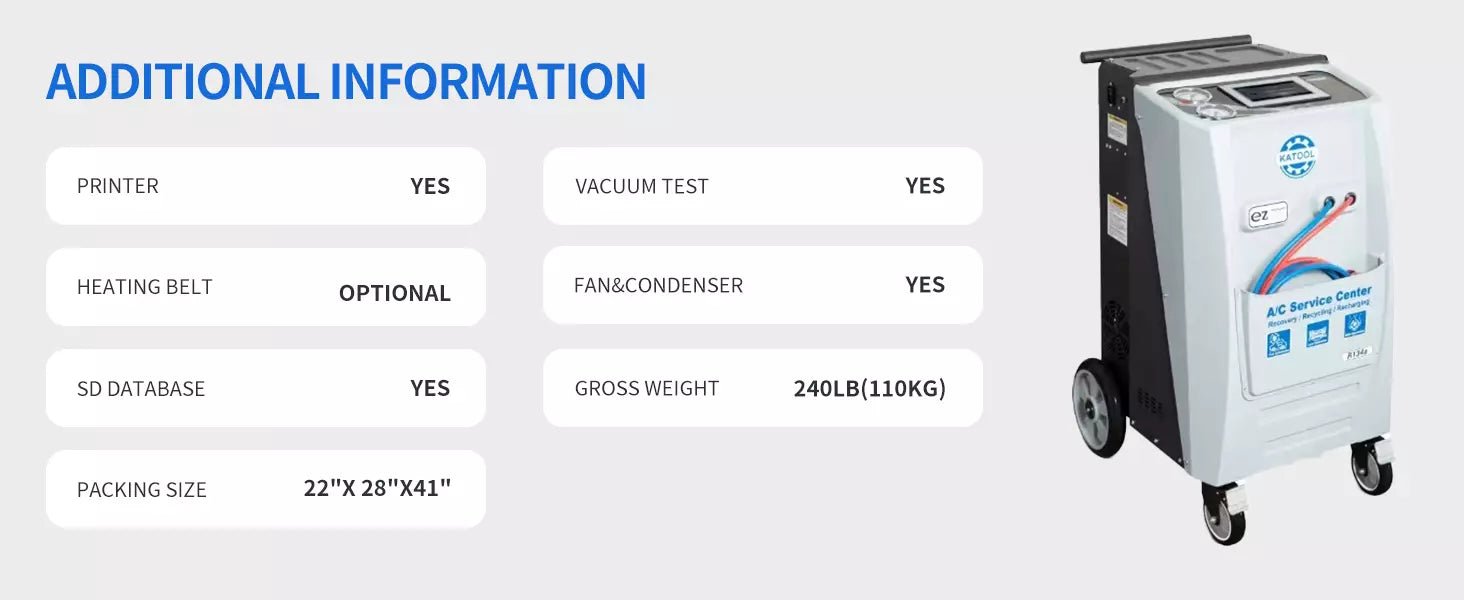

  Additional information

  Printer	YES
  Heating Belt	optional
  SD Database	YES
  Vacuum Test	YES
  Fan&Condenser	YES
  Packing Size	22”x 28”x41”(550x700x1050mm)
  Gross Weight	240lb(110kg)
