🛠️ Product Features
-

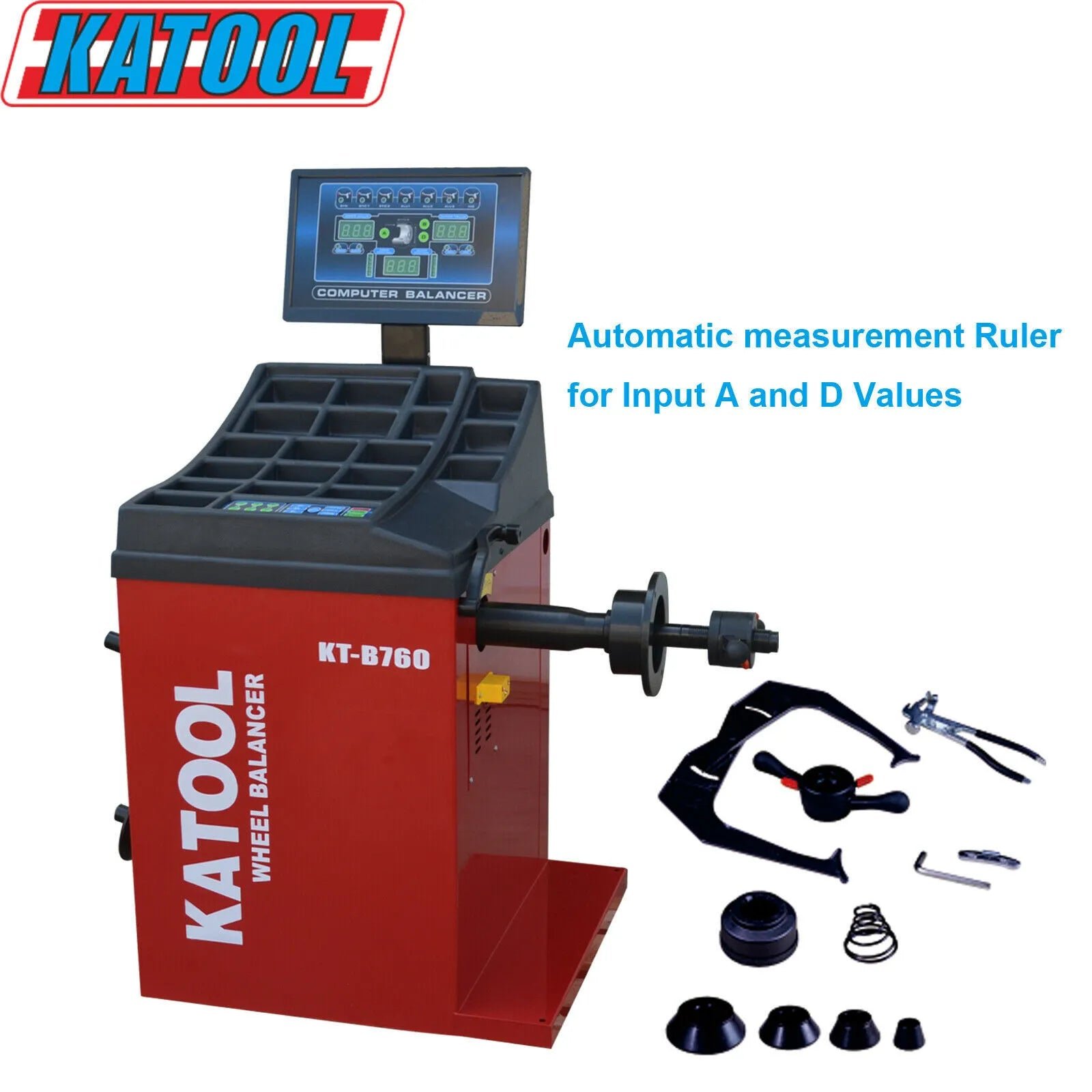

Automatic Measurement Ruler – Auto inputs A and D values for improved efficiency
-
Heavy-Duty Steel Body – 3mm thick with high-strength welds for reduced vibration and long-term durability
-
Integrated Pressure Sensor Design – Reinforced 8mm bottom and side boards ensure stability and high precision
-
Industrial-Grade Motor – Features pure copper windings for better heat dissipation, low defect rate, and extended lifespan
-
Heat-Treated Shaft – φ36mm quenching-treated shaft for maximum durability
-
Advanced Circuit Board – Dustproof, moistureproof, and anti-static with long service life
-
Multiple Balancing Modes – Customize based on rim type for precise results
-
Self-Diagnostics + Auto Calibration – Built-in dual-side calibration for ease of use, no parameter memory needed
-
Unit Switch Function – Easily toggle between Ounce/Gram and MM/Inch
-
High-Quality Power Board – Stable and reliable operation
-
Optional Wheel Guard & Extended Shaft – For wider wheels and added safety
📊 Technical Specifications
| Specification | Value |
|---|---|
| Rim Diameter | ≤ 30″ |
| Wheel Width | 3″ – 12″ |
| Wheel Diameter | ≤ 880mm |
| Balancing Speed | 180 RPM |
| Power Supply | 120V / Single Phase |
| Motor Power | 0.25 kW |
| Rim Center Hole Dia. | ≤ 135mm |
| Max Wheel Weight | ≤ 65 kg |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
📦 Shipping Policy
-
Freight shipping only within the lower 48 U.S. states
-
Free shipping to commercial addresses (remote areas may incur extra fees — please confirm before delivery)
-
Residential deliveries may incur additional charges by the freight carrier
-
Buyer is responsible for unloading from the truck. A forklift or loading dock is recommended
-
Buyer is also responsible for any re-delivery fees
-
Please inspect the product carefully before signing the Bill of Lading or Delivery Receipt. Claims for damages cannot be accepted after signing.
🛡️ Warranty
-
12-Month All Parts Warranty included
