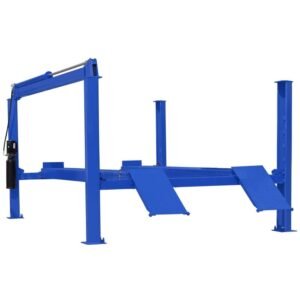

Tuxedo FP14K 14,000 lb Four Post Lift – Chain Driven

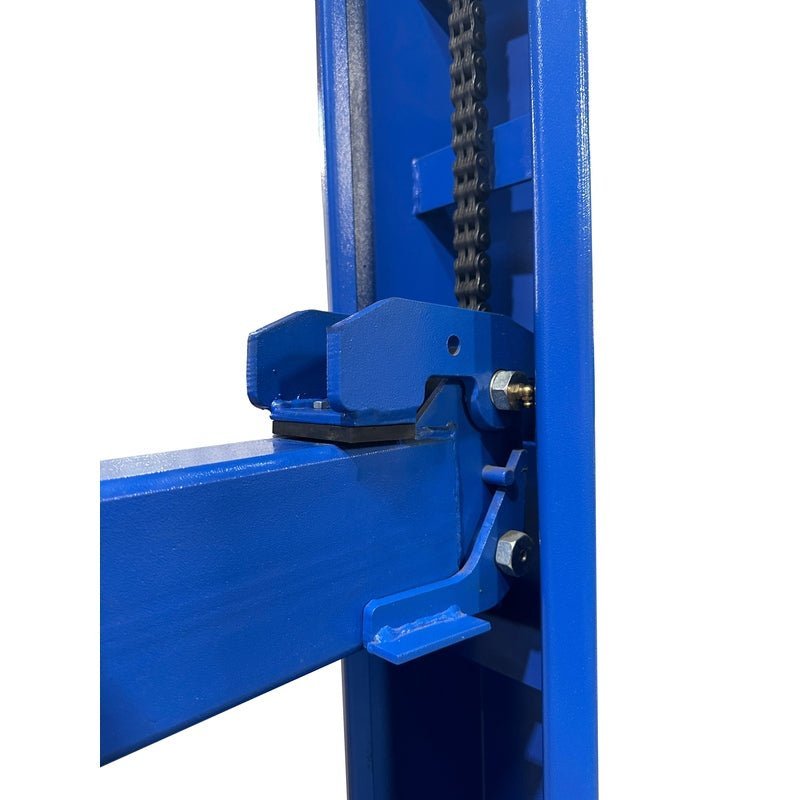

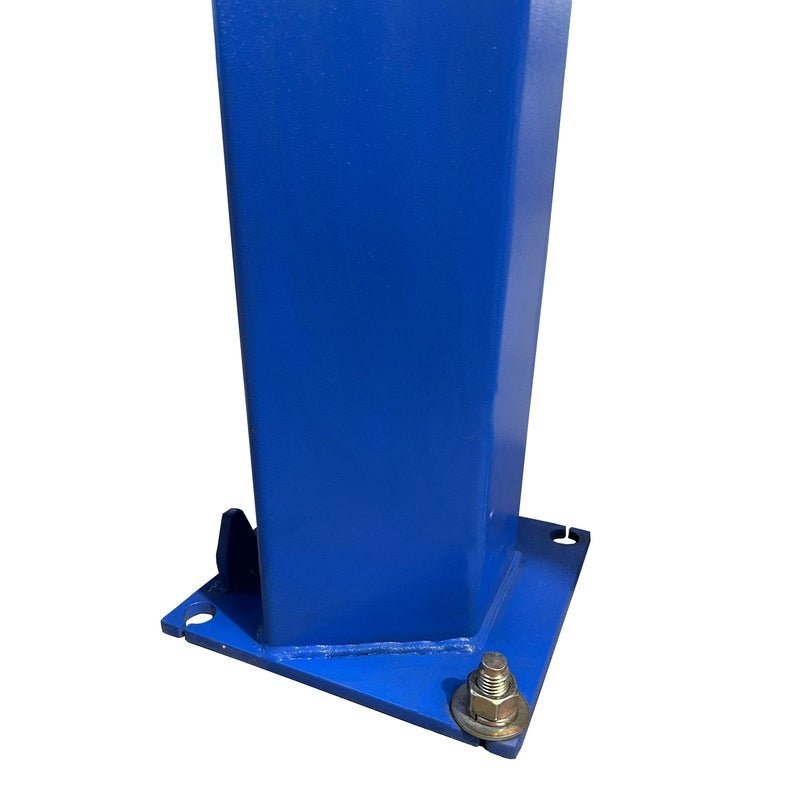

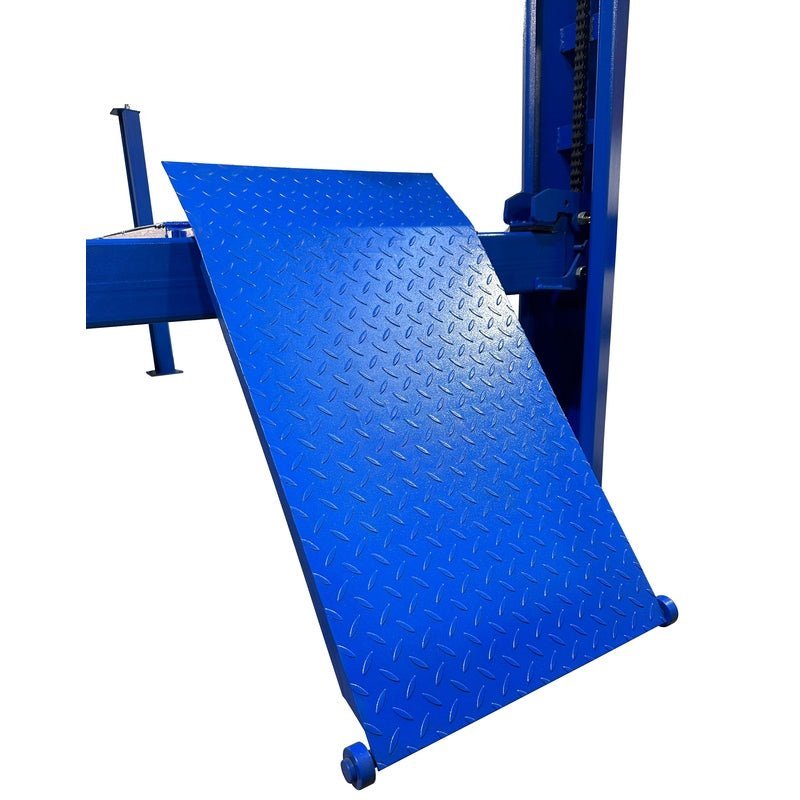

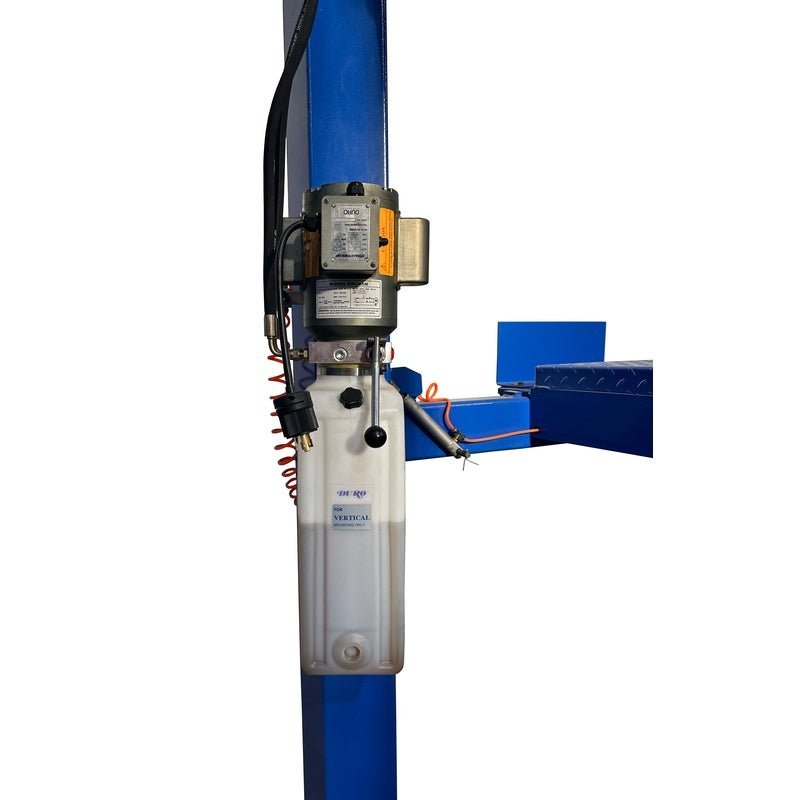

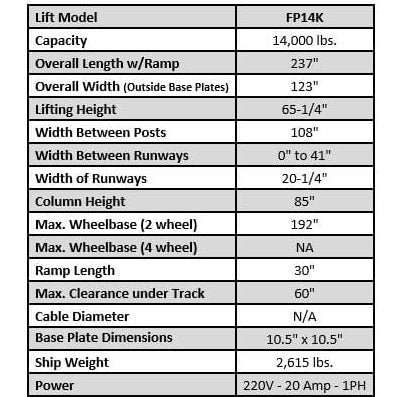

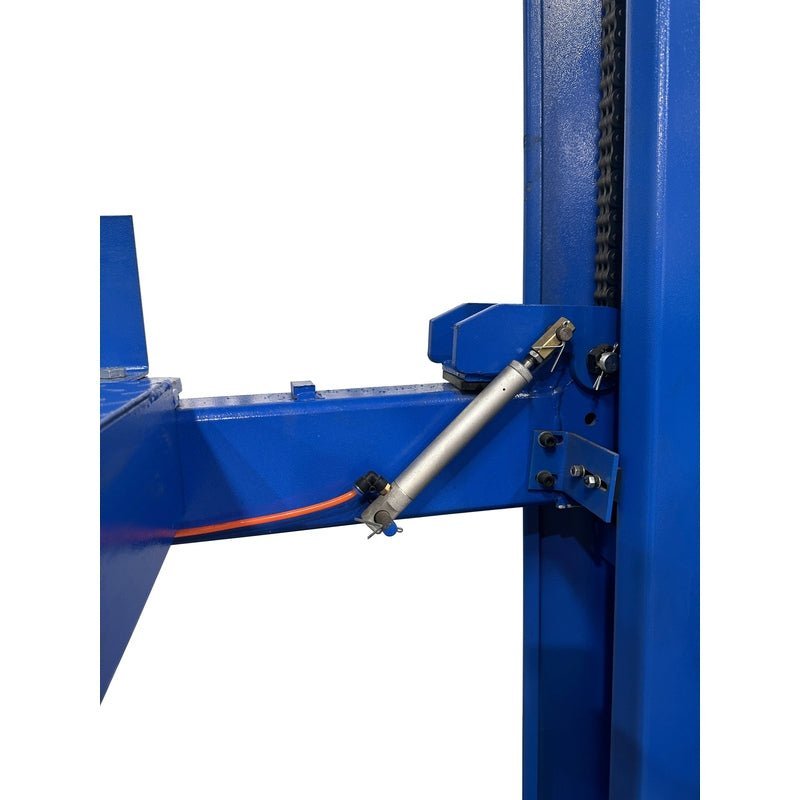

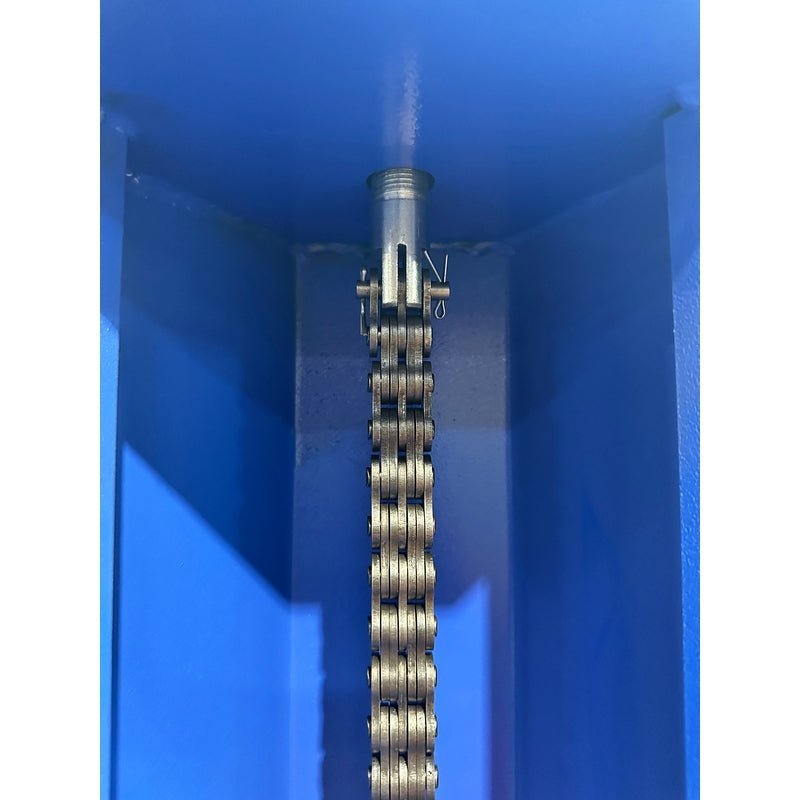

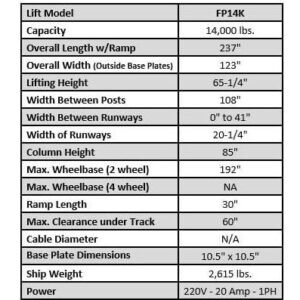

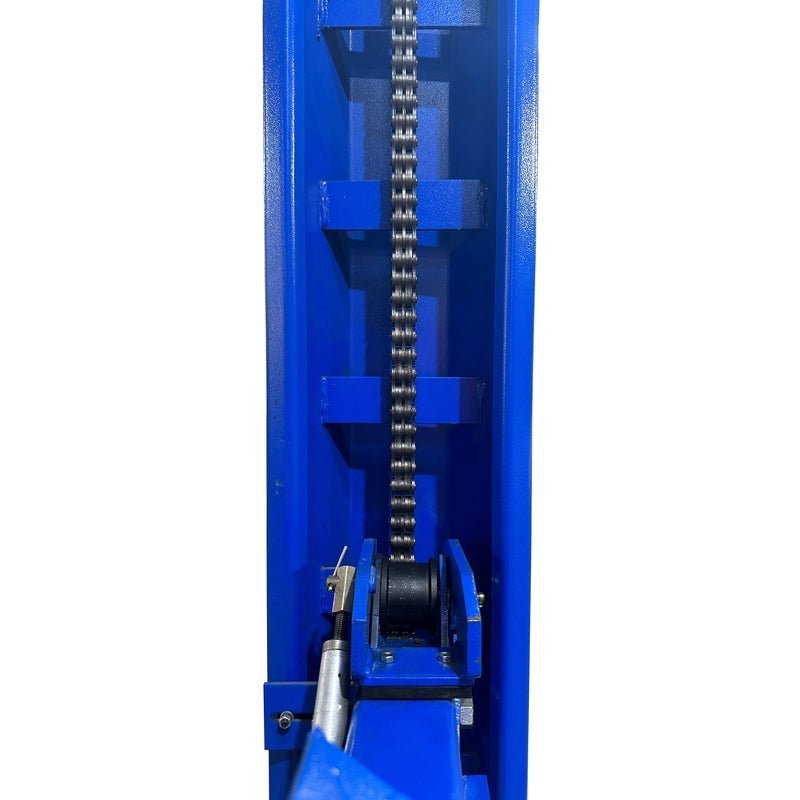

Tuxedo 14,000 lb Four Post Lift – Chain Driven These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel. Features 14,000 lbs Capacity Chain Driven 182 max wheelbase Single Point Pneumatic Lock Release Powder Coat Finish Specifications Capacity 14,000 lbs. Overall Length w/Ramp 237″ Overall Width (Without Power Unit) 123″ Overall Width (WithPower Unit) 129″ Overall Height 99″ Max Rise Height 65 – 1/4″ MinHeight 7 – 1/2″ Width Between Posts 108″ LengthBetween Posts 187″ Width Between Runways 41″ Width of Runways 20″ Max. Wheel Base 182″ Ramp Length 30″ Max. Clearance Under Runway 60″ Drive-Thru Clearance 99″ Base Plate 10-1/2″ x 10-1/2″ Power Requirement 220V-20 Amp Ship Weight 2,615 lbs. Min Bay Size 15x 24 Recommended RAJ-8K & Tuxedo Lift Combo Resources For more detailed information and guidance, you can download the following: Download Manual (PDF)
