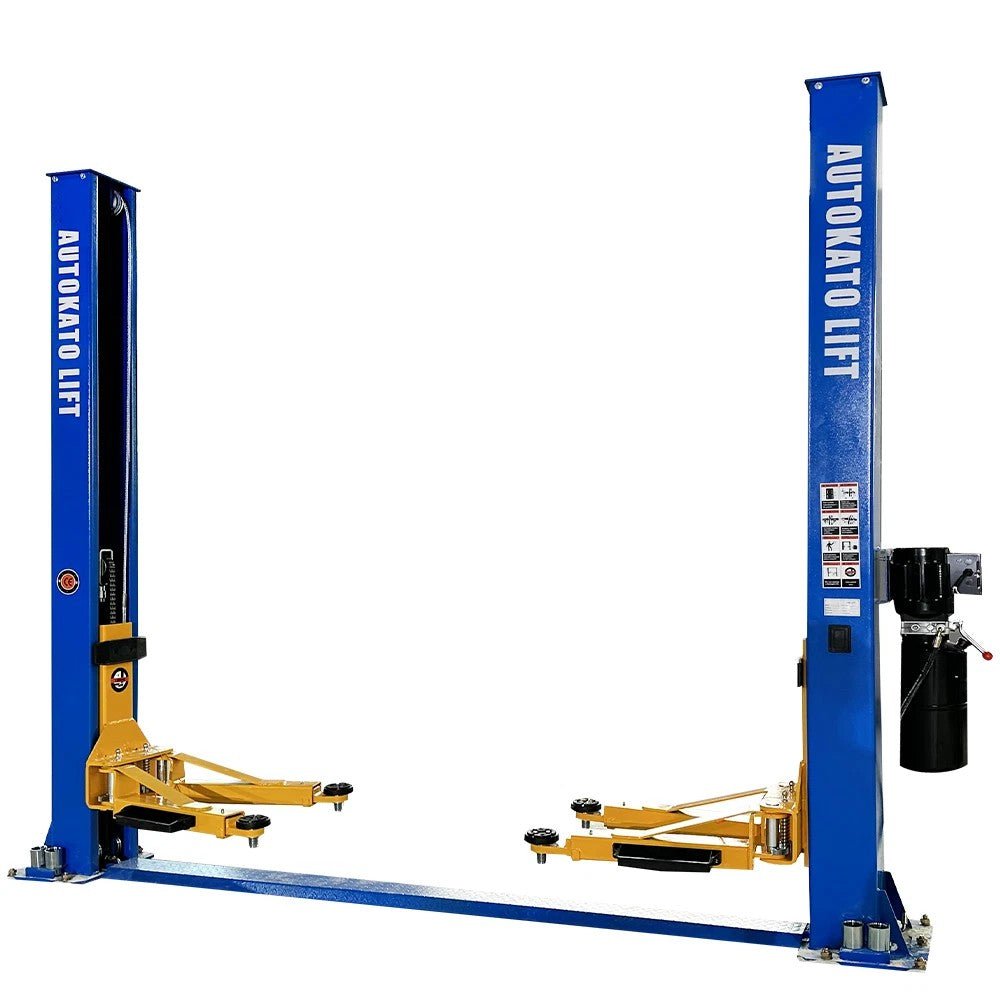

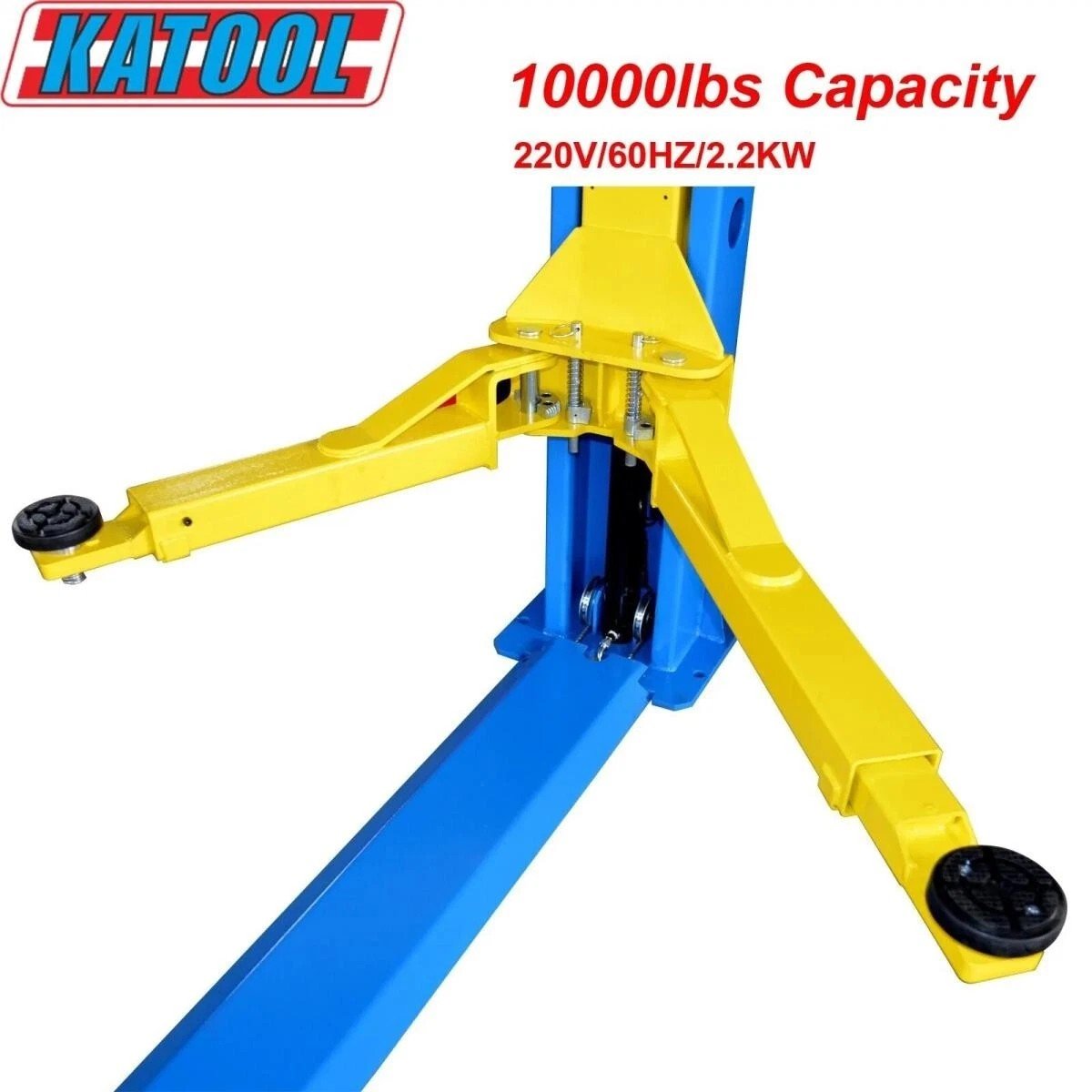

- 10000lbs lifting capacity
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
- Manual safety release from two sides.
- Base plate design

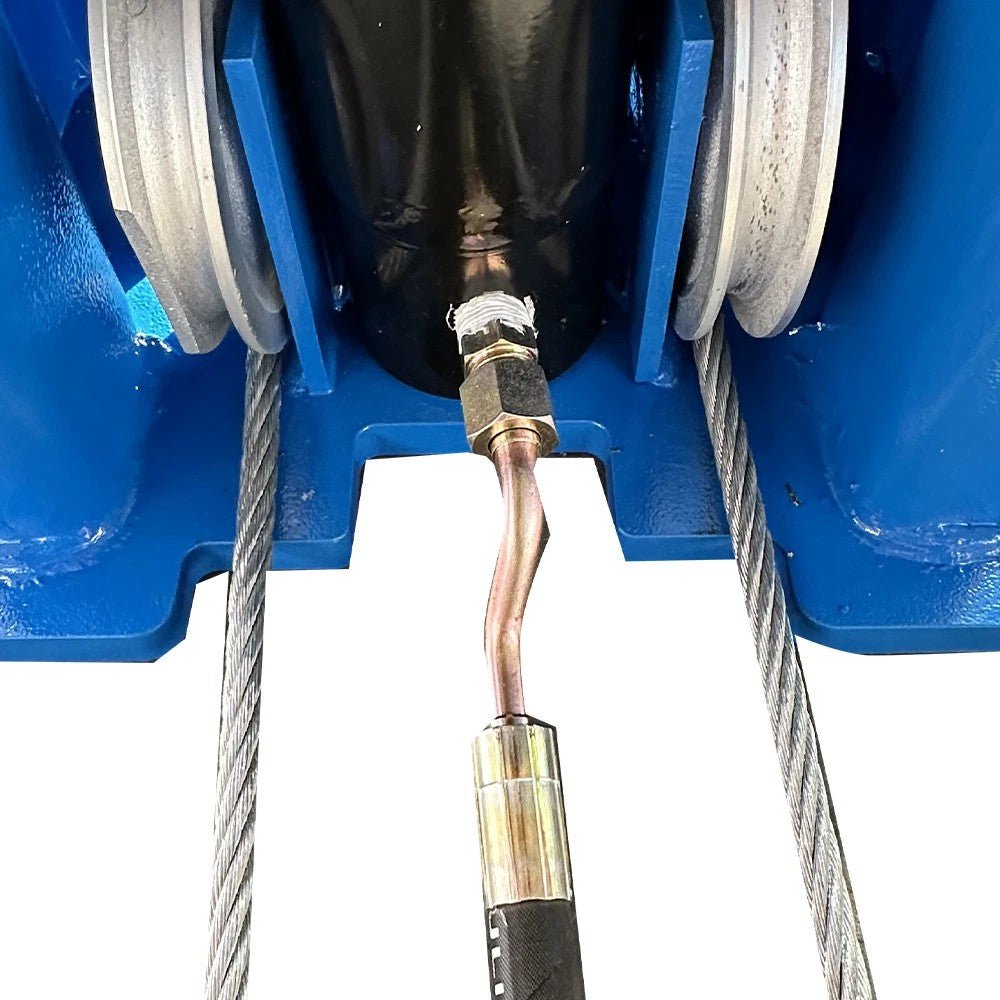

- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection.

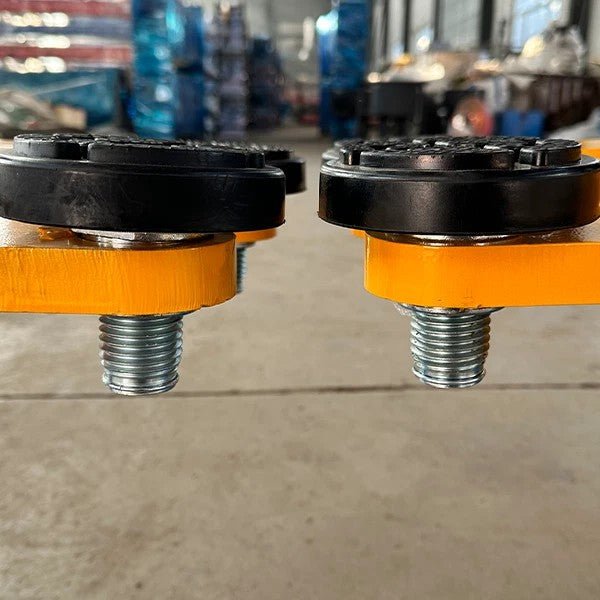

- Screw-on pad and extension support adaptor sets +100mm
- Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH OPTIONAL ADD-ON PURCHASE $199)
|

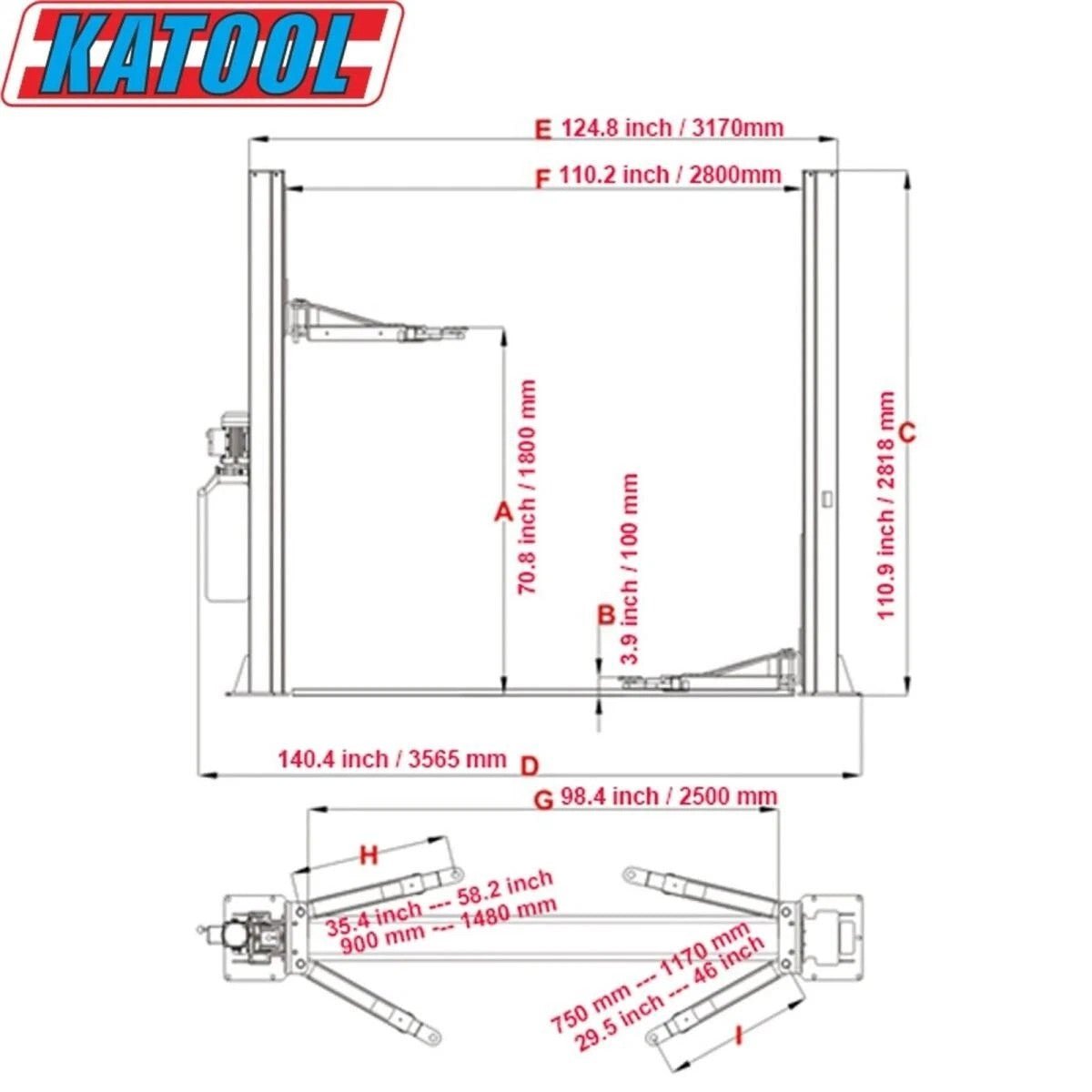

Lifting Capacity
|
10000lbs.(4500KG)
|
|
Max. Lifting Height
|
70.8″/1800mm
|
|
Min. Height
|
3.9″/100mm
|
|
Height Overall
|
110.9″/2818mm
|
|
Width Overall
|
140.4″/3565mm
|
|
Outside Column
|
124.8″/3170mm
|
|
Inside Column
|
110.2″/2800mm
|
|
Dirve-Thru Clearance
|
98.4″/2500mm
|
|
Front Arm Reach(Min)
|
29.5″/750mm(2 stages)
|
|
Front Arm Reach (Max)
|
46″/1170mm(2 stages)
|
|
Rear Arm Reach(Min)
|
29.5″/900mm(2 stages)
|
|
Rear Arm Reach(Max)
|
49.2″/1480mm(2 stages)
|
|
Motor
|
220VAC/60HZ/1PH/2.2KW
|
|
Net Weight
|
570KG
|
